Building Strength from the Ground Up

Unstable soils are every builder’s nightmare. When the ground beneath a structure can’t support the load, it leads to excessive settlement, cracking, and project delays that can cost millions. That’s where the Geopier® GeoConcrete® Column (GCC) system steps in—a modern, proven solution that reinforces weak soils by transferring the loads to deeper, more competent soil layers through rigid inclusions, ensuring structures are supported by a solid, reliable foundation. Unlike conventional deep foundations or piles, GeoConcrete Columns provide strength and stability faster, with less material waste and lower overall project costs. In other words, they don’t just fix the problem—they prevent it from occurring in the first place.

The Smart Way to Build over Weak Soils

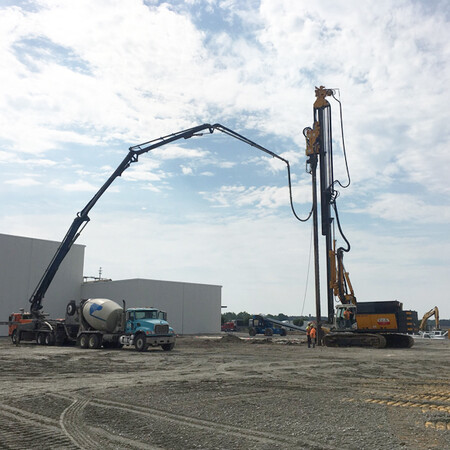

The GeoConcrete Column system uses controlled installation methods to form rigid, high-strength concrete inclusions within soft or loose soils. The process begins with a mandrel-driven displacement technique that pushes through the soil, displacing it rather than removing it—minimizing spoils and eliminating or reducing the need for costly haul-off. Once the hole is formed, concrete is pumped through a closed, airtight mandrel system, ensuring precision placement and quality control from top to bottom. The result? A rigid and durable concrete column with an enlarged bulb that transfers structural loads into deeper, more competent bearing layers.

These columns are ideal for a wide range of applications including heavy industrial facilities, warehouse floors, embankments, and bridge approaches. They’re especially valuable in challenging environments with soft clays, silts, and organics, or in areas where deep foundations would typically be overkill. The system offers up to 20–50% cost savings compared to traditional piling solutions, while dramatically cutting construction time.

The Risks of Cutting Corners Underground

When it comes to foundation performance, shortcuts can be costly. Ignoring poor soil conditions—or using generic, outdated ground improvement methods—can lead to uneven settlement, structural cracking, and even total foundation failure. GCCs mitigate those risks by creating a stable, engineered support matrix beneath the structure. The rigorous quality control applied during installation process ensures consistent performance and eliminates the variability that can undermine long-term reliability.

Geopier’s rigid inclusion technology gives designers and builders confidence that their projects will perform as intended—without the need for costly remediation or repair later. Because each system is engineered to match the site’s specific soil profile and loading conditions, the result is not only strong, but also highly efficient and optimized for performance..

Historical Example

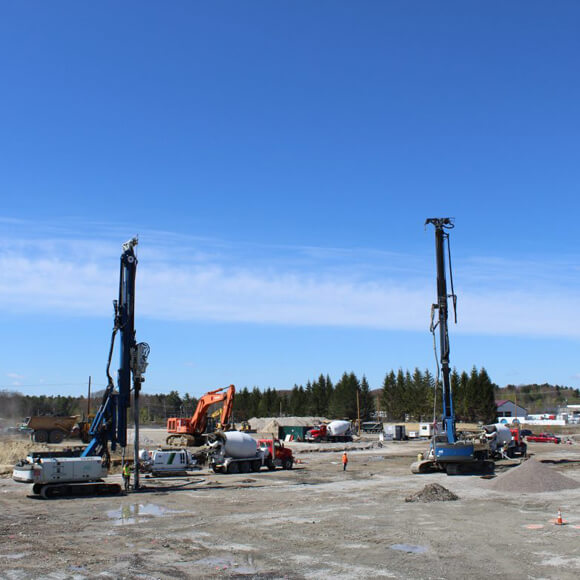

More than 1,300 rigid inclusions were installed on a super market project in Portland, Maine to reinforce the weak soils and transfer loads to the stronger tills below, helping the team control settlement and avoid the need for deep foundations. The result? A stable building pad delivered ahead of schedule, allowing construction to stay on track and the developer to meet tenant timelines—an excellent showcase of ground improvement done right. Read more on this project by clicking here.

Know Your Hazards

It’s critical to understand the site’s potential ground stability and bearing capacity risk during the planning and design stages of a project. Information gathered through geotechnical investigations such as cone penetration testing (CPT) and soil borings, provide valuable insights to help engineers quantify risk. By identifying soil weaknesses early, project teams can design and budget for effective ground improvement solutions like GeoConcrete Columns, helping to avoid costly surprises down the road.

How Geopier Fits In

As an industry leader in ground improvement, Geopier delivers engineered systems specifically designed to address soil stability challenges. The GeoConcrete Column system increases bearing capacity, reduces settlement, and provides an ideal foundation solution for structures built on soft or compressible soils. The system’s innovative displacement installation method reduces spoils, eliminates the need for casing, and shortens construction schedules—all while providing rigid, dependable support for the structure.

This combination of performance, precision, and efficiency makes GCC a trusted solution for engineers and builders who demand reliable, long-term results.

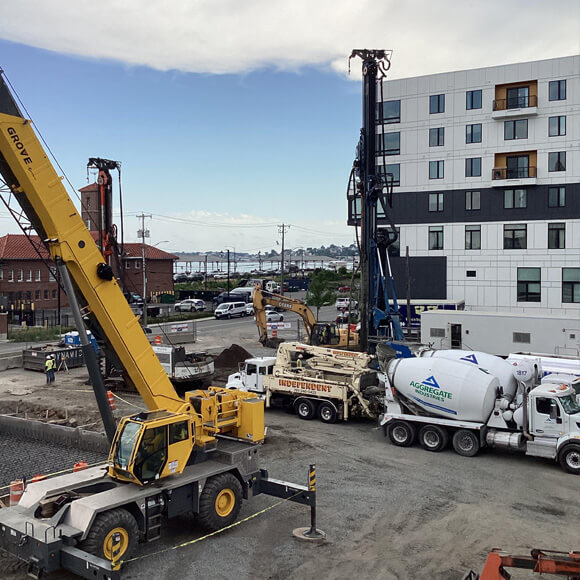

Project Summary: Revere Beach Apartments in Massachusetts

Geopier’s ground improvement expertise helped transform a challenging coastal site into a reliable foundation for a new 7‑story residential building. The property sat atop tricky urban fill and organic soils—conditions that demanded a smarter approach than deep foundations. Geopier stepped in with a hybrid system of rigid inclusions, using high‑capacity GeoConcrete® Columns for the building’s major loads and Grouted Impact® Piers to support the slab-on-grade. Learn more by clicking here.

Don’t Wait. Contact Geopier Today

Every project starts from the ground up—and a strong foundation begins with the right solution. Geopier continues to redefine what’s possible in ground improvement, offering innovative systems like GCCs that are engineered for today’s challenges and tomorrow’s demands. While other companies in the industry may offer similar approaches, Geopier stands apart through its continued advancement of the science and technology behind soil reinforcement.

Don’t wait until your next project faces soil challenges—plan for success today. Contact Geopier today to learn how the GeoConcrete Column system can deliver confidence from the ground up.
